CHINESEAU-P60-20-100-2057 dual-spectrum PTZ camera(heavy load)
- Description
- Features
- Specification
- Optional
• Long life, backlash-free turbine/ worm drive.
• USING SONY high-performance 1/1.8" inch 2 million CMOS image sensor Optical image stabilization, lens is 15-850mm
• Thermal image cell spacing 12um, resolution 640×512£¬Continuous zoom, lens is 20-100mm
• Anti-corrosion ASTM B117 / ISO 9227£¨2000 H£©Complies with classification society standards
• Horizontal 360° rotation, speed up to 0.01°/s—120°/S
• vertical -90°-+90°£¬speed up to 0.01°/s—60°/S
• preset position accuracy 0.003 degree
• Rotation speed resolution 0.001°/s
• 3D positioning function
• Remote power restart function
|
Model Parameter |
Dual-spectrum PTZ Camera(Heavy load) |
|
|
AU-P60-20/100-2057 |
||
|
Thermal camera |
Detector Type |
Vanadium oxide uncooled focal plane detector |
|
The response wave band |
8~14μm |
|
|
NETD |
≤50mK@25¡æ,F#1.0£¨≤40mK optional£© |
|
|
Resolution |
640×512 |
|
|
Pixel Space |
12um |
|
|
Focus |
20~100mm £¨Be equivalent to 640×512£¬17um£¬30-150mm£© |
|
|
Focus Mode |
Auto/Manual/Semi-automatic |
|
|
Field Angle |
22.0°×17.6°£»4.4°×3.5° |
|
|
F Value |
F0.8~F1.1 |
|
|
Space Resolution |
0.120~0.600mrad |
|
|
Detection Range£¨M£© |
Human£º1.8mx0.5m Vehicle£º1.4mx4.0m |
|
|
Vehicle detect£º3194~9583 Human detect£º1042~3125 |
||
|
Vehicle recognition£º799~2396 Human recognition£º260~781 |
||
|
Vehicle identification£º399~1198 Human identification£º130~391 |
||
|
Digital zoom |
1.0~4.0× continuous zoom |
|
|
Color Palette |
Black hot/white hot/Iron red/Rainbow and other pseudo-color(total has 18 modes) |
|
|
Zoom camera |
Image Sensor |
1/1.8"Inch 2 M CMOS Image sensor |
|
Resolution |
1920x1080 |
|
|
Optical Zoom |
57X |
|
|
Focal Length |
15~850mm |
|
|
Focus |
Auto£¯Manual£¯Once trigger |
|
|
Field angle |
Horizontal£º29°¡«0.4° |
|
|
The recent Distance |
1m¡«10m£¨Near¡«Far£© |
|
|
Aperture |
2.8¡«6.5 |
|
|
Min. illumination |
Color£º 0.01Lux/F2.1 B/W£º0.001Lux/F2.1 |
|
|
Wide dynamic |
Support |
|
|
Strong light inhibition |
Support |
|
|
Digital Noise reduction |
3D |
|
|
Area Strengthen |
ROI area-of-interest |
|
|
Backlight compensation |
Support |
|
|
Electronic Shutter |
1/1s~1/30000s |
|
|
Digital zoom |
16X |
|
|
Through Fog |
Optical through fog, Electronic through fog on/off |
|
|
Gain control |
Auto/Manual |
|
|
White Balance |
Auto/Manual/Tracking/Outdoor/indoor/Outdoor Auto |
|
|
Anti-shake |
Optical image stabilization, Electronic image stabilization on/off |
|
|
Iris Control |
Auto/Manual |
|
|
S/N Ratio |
≥55dB£¨AGC Off£¬Weight ON£© |
|
|
Day/Night type |
Auto/Manual |
|
|
PT Part |
Pan Range |
360° endless |
|
Pan Speed |
0.01°~ 120°/s |
|
|
Tilt Range |
-90°~+90° |
|
|
Tilt Speed |
0.01°~60°/s |
|
|
Preset Position Accuracy |
0.003° |
|
|
Rotation speed resolution |
0.001° /s |
|
|
Number of Preset Position |
256 |
|
|
Apple Peel Scanning |
4 groups |
|
|
Cruise Scanning |
4 groups |
|
|
Pattern Scanning |
4 groups |
|
|
P2P Scanning |
4 groups |
|
|
360 degree Scanning |
1 groups |
|
|
Auto Home |
support |
|
|
3D Positioning |
support |
|
|
Power Off Memory |
support |
|
|
Return angle |
support |
|
|
Long-focus speed limit |
PT speed automatically adjusts with the lens zoom magnification |
|
|
PT limit |
Support |
|
|
Privacy |
Support£¬Can be set Pan/Tilt |
|
|
Keep Watch |
Support |
|
|
Timed Task |
Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning |
|
|
Fan/Heater/Wiper |
Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning |
|
|
Remote Power-off Restart |
Auto/Manual |
|
|
Network |
Network Protocol |
TCP/IP,UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,SMTP,NTP,QoS etc.. |
|
Interface protocol |
ONVIF2.0, GB28181 |
|
|
Preview the number of videos at the same time |
Max. 20 users |
|
|
User management |
Max Support 20 users, has 3 grades: administrators, operators and regular user. |
|
|
Security Policy |
Support authorized users and passwords, HTTPS encryption and IEEE 802.1x network access control, IP address filtering |
|
|
Explorer |
Support IE8+ |
|
|
Remote Access |
Support remote control, remote upgrade |
|
|
API |
Open API supporting software integration, SDK, and third-party management platform access. |
|
|
Video |
Max. image size |
1920x1080£¨zoom camera£©£¬640×512£¨thermal camera£© |
|
Image Encoding Format |
JPEG |
|
|
Video Compression Format |
H.265/H.264/H.264B/H.264H/MJPEG |
|
|
Audio Compression Format |
G.711A/G.711Mu/PCM/AAC/MPEG2-Layer2 |
|
|
Main Stream |
Zoom camera£º |
|
|
Sub Stream |
Zoom camera£º |
|
|
Intelligent |
Fire Detection |
Support |
|
Hot spot tracking |
Support |
|
|
Intelligent Tracking |
Supports multiple tracking modes such as event tracking etc. |
|
|
Intelligent Alarm |
Support network cable disconnection, IP address conflict, Memory full, Memory error, Illegal access and other abnormal detection and linkage alarm function. |
|
|
Intelligent Detection |
Support intelligent video analysis function such as mixing wire, cross-boundary, area intrusion, wandering detection, and audio anomaly detection. |
|
|
System Port |
Alarm Linkage |
SD card recording/mail/linkage PTZ/ snapshot/alarm output |
|
Audio Inputs |
1 |
|
|
Audio Outputs |
1 |
|
|
Video outputs |
1.0V[p-p] / 75ꜪBNC |
|
|
NI |
RJ45 10M / 100M Adaptive Ethernet Port |
|
|
Alarm Inputs |
7 |
|
|
Alarm Outputs |
2 |
|
|
Storage Interface |
Support Micro SD card£¨Max. 256G£©£¬Support Hot-swappable |
|
|
RS485 |
1, support Pelco protocol |
|
|
System |
Operating Temperature and Humidity |
-40¡æ~+60¡æ£»<90%RH |
|
Protection Class |
IP66£¬TVS 6000V lightning protection, surge prevention, accord with GB/T17626.5 level four |
|
|
Power inputs |
DC48V |
|
|
Power Consumption |
150W |
|
|

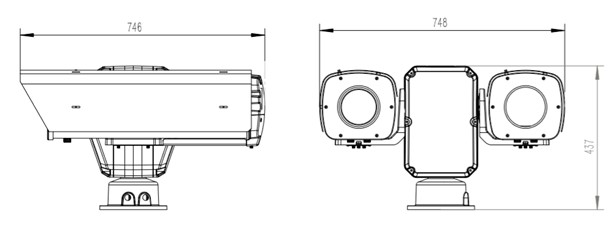

Size (mm) |
746× 748× 437mm (W×H ×L) |
|
|
Weight |
60KG |
|
