CHINESEAU-F17H-4035-1000 laser PTZ camera
- Description
- Features
- Specification
- Optional
• Integrated line-free PTZ and housing.
• USING SONY high-performance 1/1.8" inch 4 million CMOS image sensor.
• Laser zoom is synchronized with lens zoom, illumination distance of 500 meters.
• Horizontal 360° rotation, speed up to 0.1°-100°/S
• vertical -90°-+40°, speed up to 0.1°-60°/S
• preset position accuracy ±0.02 degree.
• 3D positioning function
• Support remote online upgrade FW.
• Remote power restart function
|
Model Parameter |
Laser PTZ camera |
|
|
AU-F17H-4035-1000 |
||
|
Laser Lamp |
Laser lamp type |
850nm |
|
Lighting distance |
1000m |
|
|
Zoom range |
0.8°-30° |
|
|
Zoom control |
Follow-up with zoom /manual |
|
|
Open/Close |
Follow-up with zoom /manual |
|
|
Zoom camera |
Image Sensor |
1/1.8"Inch 4 M CMOS Image sensor |
|
Resolution |
2688(H)×1520(V) |
|
|
Optical Zoom |
35X |
|
|
Focal Length |
6~210mm |
|
|
Focus |
Auto£¯Manual£¯Once trigger |
|
|
Field angle |
Horizontal£º61°¡«2° |
|
|
The recent Distance |
0.1m¡«1.5m£¨Near¡«Far£© |
|
|
Aperture |
1.5¡«4.8 |
|
|
Min. illumination |
0.005Lux@F1.5£¨Color£©£¬0.0005Lux@F1.5£¨B/W£© |
|
|
Wide dynamic |
Support |
|
|
Strong light inhibition |
Support |
|
|
Digital Noise reduction |
3D |
|
|
Area Strengthen |
ROI area-of-interest |
|
|
Backlight compensation |
Support |
|
|
Electronic Shutter |
1/1s~1/30000s |
|
|
Digital zoom |
16X |
|
|
Through Fog |
Open/Close |
|
|
Gain control |
Auto/Manual |
|
|
White Balance |
Auto/Manual/Tracking/Outdoor/indoor/Outdoor Auto |
|
|
Anti-shake |
Electronic |
|
|
Iris Control |
Auto/Manual |
|
|
S/N Ratio |
≥55dB£¨AGC Off£¬Weight ON£© |
|
|
Day/Night type |
Auto/Manual |
|
|
PT Part |
Pan Range |
360° endless |
|
Pan Speed |
0.1°~ 100°/s |
|
|
Tilt Range |
-90°~+40° |
|
|
Tilt Speed |
0.1°~60°/s |
|
|
Preset Position Accuracy |
0.02° |
|
|
Number of Preset Position |
256 |
|
|
Apple Peel Scanning |
4 groups |
|
|
Cruise Scanning |
4 groups |
|
|
Pattern Scanning |
4 groups |
|
|
P2P Scanning |
4 groups |
|
|
360 degree Scanning |
1 group |
|
|
3D Positioning |
Support |
|
|
Power Off Memory |
Support |
|
|
Long-focus speed limit |
PT speed automatically adjusts with the lens zoom magnification |
|
|
PT limit |
Support£¬Can be set Pan/Tilt |
|
|
Privacy |
Support |
|
|
Keep Watch |
Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning |
|
|
Timed Task |
Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning |
|
|
Fan/Heater/Wiper |
Auto/Manual |
|
|
Remote Power-off Restart |
Support |
|
|
Network |
Network Protocol |
TCP/IP,UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,SMTP,NTP,QoS etc.. |
|
Interface protocol |
ONVIF2.0, GB28181 |
|
|
Preview the number of videos at the same time |
Max. 20 users |
|
|
User management |
Max Support 20 users, has 3 grades: administrators, operators and regular user. |
|
|
Security Policy |
Support authorized users and passwords, HTTPS encryption and IEEE 802.1x network access control, IP address filtering |
|
|
Explorer |
Support IE8+ |
|
|
Remote Access |
Support remote control, remote upgrade |
|
|
API |
Open API supporting software integration, SDK, and third-party management platform access. |
|
|
Video |
Max. image size |
2560x1440 |
|
Image Encoding Format |
JPEG |
|
|
Video Compression Format |
H.265/H.264/H.264B/H.264H/MJPEG |
|
|
Audio Compression Format |
G.711A/G.711Mu/PCM/AAC/MPEG2-Layer2 |
|
|
Main Stream |
50Hz:25fps(2560x1440)¡¢25fps(1920×1080)¡¢25fps(1280×720)£» |
|
|
Sub Stream |
50Hz:25fps(1280×720)¡¢25fps(704×576) |
|
|
Intelligent |
Intelligent Tracking |
Supports multiple tracking modes such as event tracking etc. |
|
Intelligent Alarm |
Support network cable disconnection, IP address conflict, Memory full, Memory error, Illegal access and other abnormal detection and linkage alarm function. |
|
|
Intelligent Detection |
Support intelligent video analysis function such as mixing wire, cross-boundary, area intrusion, wandering detection, and audio anomaly detection. |
|
|
Alarm Linkage |
SD card recording/mail/linkage PTZ/ snapshot/alarm output |
|
|
System Port |
Audio Inputs |
1 |
|
Audio Outputs |
1 |
|
|
Video outputs |
1.0V[p-p] / 75ꜪBNC |
|
|
NI |
RJ45 10M / 100M Adaptive Ethernet Port |
|
|
Alarm Inputs |
7 |
|
|
Alarm Outputs |
2 |
|
|
Storage Interface |
Support Micro SD card£¨Max. 256G£©£¬Support Hot-swappable |
|
|
RS485 |
1, support Pelco protocol |
|
|
Operating Temperature and Humidity |
-40¡æ~+70¡æ£»<90%RH |
|
|
Protection Class |
IP66£¬TVS 6000V lightning protection, surge prevention, accord with GB/T17626.5 level four |
|
|
System |
Power inputs |
DC 24V |
|
Power Consumption |
75W |
|
|

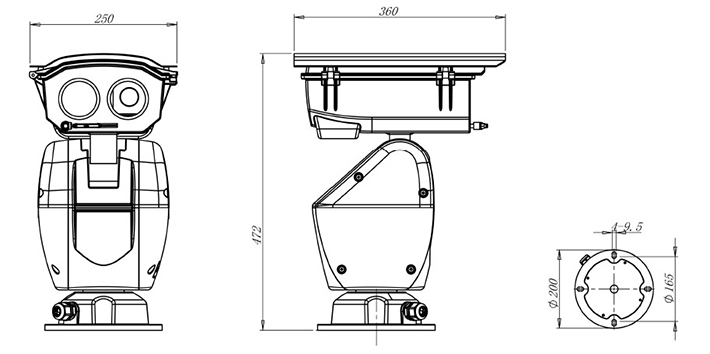

Size (mm) |
250× 472× 360mm(W×H ×L) |
|
|
Weight |
20KG |
|
|
Installation type |
Upright |
|
