Model

Parameter

Dual-spectrum PTZ camera (light load)

AU-P20

Thermal camera

Detector Type

Vanadium oxide uncooled focal plane detector

The response wave band

8~14μm

NETD

≤40mK@25℃,F#1.0

Resolution

640x512

Pixel Space

12um

Focus

9.1mm、13mm、19mm、25mm、35mm

Focus Mode

Auto/Manual/Semi-automatic

Field Angle

48°×38°、33°×26°、22°×18°、17°×14°、12.5°×10.0°

F Value

F1.0 /F1.2

Space Resolution

1.31mrad、0.92mrad、0.63mrad、0.48mrad、0.34mrad

Color Palette

Black hot/white hot/Iron red/Rainbow and other pseudo-color(total has 18 modes)

Temperature measurement function

Temperature measurement range

20℃~+150℃，0℃~550℃，Automatic gain switching

Temperature measurement accuracy

±2℃ or ±2% (take a big value)

The whole frame

Global temperature measurement, support maximum value, minimum value and any point real-time spot temperature measurement

Point

12

Line

12，There are maximum, minimum and average temperatures on the line

Area

12，Supports circles, rectangles, and irregular polygons to display the highest, lowest, and average temperatures

Isotherm

1 group，High and low thresholds can be set

Temperature difference

Support temperature difference display and alarm between temperature measurement tools, and set temperature alarm values between multiple areas

Environment variable correction

Distance, atmospheric temperature, relative humidity, emissivity, reflected temperature, IR window correction (global/local)

Zoom

 camera

Image Sensor

1/1.8"Inch 4 M CMOS Image sensor

Resolution

2560x1440

Optical Zoom

20X

Focal Length

6.5～130mm

Focus

Auto／Manual／Once trigger

Field angle

59°~3.2°

The recent Distance

0.5m～2m（Near～Far）

Aperture

1.5～4.0

Min. illumination

Color： 0.001Lux/F1.5   B/W： 0.0001Lux/F1.5

Wide dynamic

Support

Strong light inhibition

Support

Digital Noise reduction

3D

Area Strengthen

ROI area-of-interest

Backlight compensation

Support

Electronic Shutter

1/1s~1/30000s

Digital zoom

4X

Through Fog

Open/Close

Gain control

Auto/Manual

White Balance

Auto/Manual/Tracking/Outdoor/indoor/Outdoor Auto

Anti-shake

Electronic

Iris Control

Auto/Manual

S/N Ratio

≥55dB（AGC Off，Weight ON）

Day/Night type

Auto/Manual

PT

Part

Pan Range

360° endless

Pan Speed

0.1°~ 100°/s

Tilt Range

-90°~+40°

Tilt Speed

0.1°~60°/s

Preset Position Accuracy

0.1°

Number of Preset Position

256个

Apple Peel Scanning

4 groups

Cruise Scanning

4 groups

Pattern Scanning

4 groups

P2P Scanning

4 groups

360 degree Scanning

1 group

3D Positioning

Support

Power Off Memory

Support

Long-focus speed limit

 PT speed automatically adjusts with the lens zoom magnification

PT limit

Support，Can be set Pan/Tilt

Privacy

Support

Keep Watch

Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning

Timed Task

Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning

Fan/Wiper

Auto/Manual

Put the burn

Support

Remote Power-off Restart

Support

Network

Network Protocol

TCP/IP,UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,SMTP,NTP,QoS etc..

Interface protocol

ONVIF2.0, GB28181

Preview the number of videos at the same time

Max. 20 users

User management

Max Support 20 users, has 3 grades: administrators, operators and regular user.

Security Policy

Support authorized users and passwords, HTTPS encryption and IEEE 802.1x network access control, IP address filtering

Explorer

Support IE8+

Remote Access

Support remote control, remote upgrade

API

Open API supporting software integration, SDK, and third-party management platform access.

Video

Max. image size

2560x1440（Zoom camera），640×512（thermal camera）

Image Encoding Format

JPEG

Video Compression Format

H.265/H.264/H.264B/H.264H/MJPEG

Audio Compression Format

G.711A/G.711Mu/PCM/AAC/MPEG2-Layer2

Main Stream

Zoom camera：
50Hz:25fps(2560x1440)、25fps(1920×1080)、25fps(1280×720)；
60Hz:30fps(2560x1440)、30fps(1920×1080)、30fps(1280×720)；
thermal camera：
50Hz:25fps(640x512)；
60Hz:30fps(640x512)；

Sub Stream

Zoom camera：
50Hz:25fps(1280×720)、25fps(704×576)
60Hz:30fps(1280×720)、30fps(704×480)
thermal camera：
50Hz:25fps(640x512)；
60Hz:30fps(640x512)；

Intelligent

Fire Detection

Support

Hot spot tracking

Support

Intelligent Tracking

Supports multiple tracking modes such as event tracking etc.

Intelligent Alarm

Support network cable disconnection, IP address conflict, Memory full, Memory error, Illegal access and other abnormal detection and linkage alarm function.

Intelligent Detection

Support intelligent video analysis function such as mixing wire, cross-boundary, area intrusion, wandering detection, and audio anomaly detection.

Alarm Linkage

SD card recording/mail/linkage PTZ/ snapshot/alarm output

System Port

NI

RJ45 10M / 100M /1000M Adaptive Ethernet Port

Audio Inputs

1

Audio Outputs

1

Alarm Inputs

7

Alarm Outputs

2

Storage Interface

Support Micro SD card（Max. 256G），Support Hot-swappable

RS485

1, support Pelco protocol

System

Operating Temperature and Humidity

-40℃~+70℃；<90%RH

Protection Class

IP66，TVS 6000V lightning protection, surge prevention, accord with GB/T17626.5 level four

Power inputs

DC12V/DC 24V

Power Consumption

10W (Stand by)    30W (Max.)

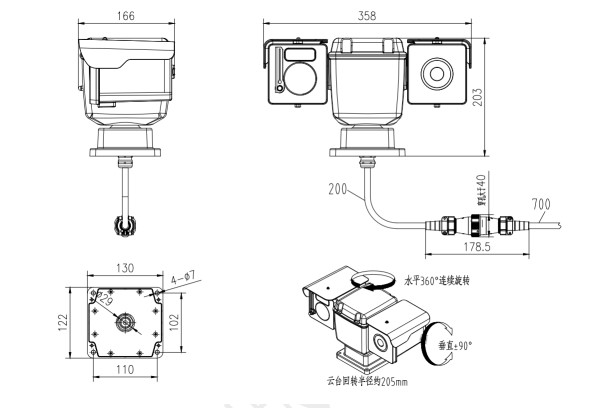

Size (mm)

358× 164.5× 203(W×H ×L)

Weight

5KG

Installation type

Upright

Thermal lens

Detection

(Vehicle)

Detection

(Human)

Recognition

(Vehicle)

Recognition

(Human)

Identification

(Vehicle)

Identification

(Human)

9.1mm

1.16Km

0.38Km

0.29Km

0.10Km

0.15Km

0.05Km

13mm

1.66Km

0.54Km

0.42Km

0.14Km

0.21Km

0.07Km

19mm

2.43Km

0.79Km

0.61Km

0.20Km

0.30Km

0.10Km

25mm

3.19Km

1.04Km

0.80Km

0.26Km

0.40Km

0.13Km
