current position£ºHOME > PRODUCTS > Single housing PTZ camera(heavy load) P52HAU-P52H-2057single housing PTZ camera(heavy load)
- Description
- Features
- Specification
- Optional
• Long life, backlash-free turbine/ worm drive.
• USING SONY high-performance 1/1.8" inch 2 million CMOS image sensor Optical image stabilization, lens is 15-850mm
• Horizontal 360° rotation, speed up to 0.01°—40°/S
• vertical -45°-+45°£¬speed up to 0.01°—20°/S
• preset position accuracy ±0.01 degree.
• 3D positioning function
• Remote power restart function
|
Model Parameter |
Single Housing PTZ Camera (Heavy load) |
|
|
AU-P52H-2057 |
||
|
Zoom camera |
Image Sensor |
1/1.8"Inch 2 M CMOS Image sensor |
|
Resolution |
1920x1080 |
|
|
Optical Zoom |
57X |
|
|
Focal Length |
15~850mm |
|
|
Focus |
Auto£¯Manual£¯Once trigger |
|
|
Field angle |
Horizontal£º29°¡«0.4° |
|
|
The recent Distance |
1m¡«10m£¨Near¡«Far£© |
|
|
Aperture |
2.8¡«6.5 |
|
|
Min. illumination |
Color£º 0.01Lux/F2.1 B/W£º0.001Lux/F2.1 |
|
|
Wide dynamic |
Support |
|
|
Strong light inhibition |
Support |
|
|
Digital Noise reduction |
3D |
|
|
Area Strengthen |
ROI area-of-interest |
|
|
Backlight compensation |
Support |
|
|
Electronic Shutter |
1/1s~1/30000s |
|
|
Digital zoom |
16X |
|
|
Through Fog |
Optical through fog, Electronic through fog on/off |
|
|
Gain control |
Auto/Manual |
|
|
White Balance |
Auto/Manual/Tracking/Outdoor/indoor/Outdoor Auto |
|
|
Anti-shake |
Optical image stabilization, Electronic image stabilization on/off |
|
|
Iris Control |
Auto/Manual |
|
|
S/N Ratio |
≥55dB£¨AGC Off£¬Weight ON£© |
|
|
Day/Night type |
Auto/Manual |
|
|
PT Part
|
Pan Range |
360° endless |
|
Pan Speed |
0.01°~ 40°/s |
|
|
Tilt Range |
-45°~+45° |
|
|
Tilt Speed |
0.01°~20°/s |
|
|
Preset Position Accuracy |
0.01° |
|
|
Number of Preset Position |
256 |
|
|
Apple Peel Scanning |
4 groups |
|
|
Cruise Scanning |
4 groups |
|
|
Pattern Scanning |
4 groups |
|
|
P2P Scanning |
4 groups |
|
|
360 degree Scanning |
1 groups |
|
|
Auto Home |
Support |
|
|
3D Positioning |
Support |
|
|
Power Off Memory |
Support |
|
|
Return angle |
Support |
|
|
Long-focus speed limit |
PT speed automatically adjusts with the lens zoom magnification |
|
|
PT limit |
Support |
|
|
Privacy |
Support£¬Can be set Pan/Tilt |
|
|
Keep Watch |
Support |
|
|
Timed Task |
Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning |
|
|
Fan/Heater/Wiper |
Preset Position/ Pattern Scanning/ Cruise Scanning/ P2P scanning/ 360 degree scanning |
|
|
Remote Power-off Restart |
Auto/Manual |
|
|
Network |
Network Protocol |
TCP/IP,UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,SMTP,NTP,QoS etc.. |
|
Interface protocol |
ONVIF2.0, GB28181 |
|
|
Preview the number of videos at the same time |
Max. 20 users |
|
|
User management |
Max Support 20 users, has 3 grades: administrators, operators and regular user. |
|
|
Security Policy |
Support authorized users and passwords, HTTPS encryption and IEEE 802.1x network access control, IP address filtering |
|
|
Explorer |
Support IE8+ |
|
|
Remote Access |
Support remote control, remote upgrade |
|
|
API |
Open API supporting software integration, SDK, and third-party management platform access. |
|
|
Video |
Max. image size |
1920x1080 |
|
Image Encoding Format |
JPEG |
|
|
Video Compression Format |
H.265/H.264/H.264B/H.264H/MJPEG |
|
|
Audio Compression Format |
G.711A/G.711Mu/PCM/AAC/MPEG2-Layer2 |
|
|
Main Stream |
25fps(1920×1080)¡¢25fps(1280×720)£» |
|
|
Sub Stream |
50Hz:25fps(1280×720)¡¢25fps(704×576) |
|
|
Intelligent |
Intelligent Tracking |
Supports multiple tracking modes such as event tracking etc. |
|
Intelligent Alarm |
Support network cable disconnection, IP address conflict, Memory full, Memory error, Illegal access and other abnormal detection and linkage alarm function. |
|
|
Intelligent Detection |
Support intelligent video analysis function such as mixing wire, cross-boundary, area intrusion, wandering detection, and audio anomaly detection. |
|
|
System Port |
Alarm Linkage |
SD card recording/mail/linkage PTZ/ snapshot/alarm output |
|
Audio Inputs |
1 |
|
|
Audio Outputs |
1 |
|
|
Video outputs |
1.0V[p-p] / 75ꜪBNC |
|
|
NI |
RJ45 10M / 100M Adaptive Ethernet Port |
|
|
Alarm Inputs |
7 |
|
|
Alarm Outputs |
2 |
|
|
Storage Interface |
Support Micro SD card£¨Max. 256G£©£¬Support Hot-swappable |
|
|
RS485 |
1, support Pelco protocol |
|
|
System |
Operating Temperature and Humidity |
-40¡æ~+60¡æ£»<90%RH |
|
Protection Class |
IP66£¬TVS 6000V lightning protection, surge prevention, accord with GB/T17626.5 level four |
|
|
Power inputs |
DC48V |
|
|
Power Consumption |
100W |
|
|

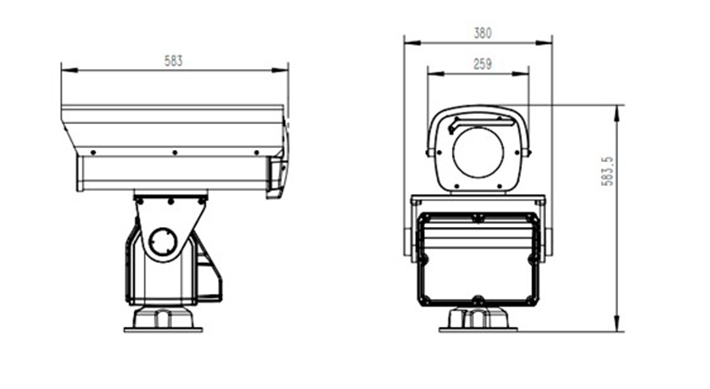

Size (mm) |
380× 563× 583mm(W×H ×L) |
|
|
Weight |
40KG |
|
